Pipeline Products Specialty Company presents Advance Products and Systems.
Call or email us today for a quote on pricing and availability.

Advance Products & Systems
108 Asset Ave
Scott, LA 70583

Trojan Isolating Kits

Sizes 1"-36" in stock

  • Gasket Type: F, E, or D

  • Gasket Material: Glass Reinforced Epoxy (G-10), Phenolic, G11, G3, or G7

  • Seal Type: Teflon, Viton, Nitrile, or Buna

  • Gasket Thickness: 0.125"

  • Sleeves: G-10, Mylar, Integral Minlon, or Phenolic

  • Washers (Double): G-10, Carbon Steel Zinc Plated, Hardened Steel, or Teflon Coated

Integra SSA (Severe Service Application) Isolating Kits

Sizes 1" - 30" available in stock

  • Gasket Type: F or E

  • Gasket Material: High Compression Glass Reinforced Epoxy (GRE)

  • Seal: Spring Energized Teflon, Viton, or Nitrile

  • Gasket Thickness: 0.250"

  • Sleeves: G-10, Mylar, Integral Minlon, or Phenolic

  • Washers (Double): G-10, Carbon Steel Zinc Plated, Hardened Steel, or Teflon Coated

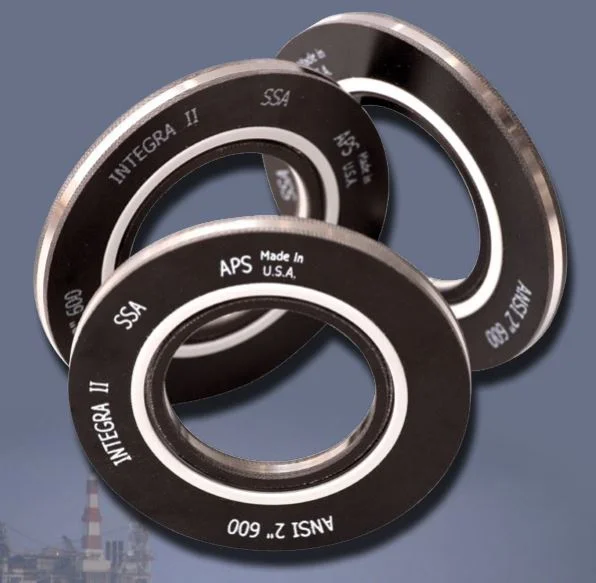

Integra II Isolating Kit

Sizes 2" - 24" available in stock

  • Gasket Type: F or E

  • Gasket Material: Glass Reinforced Epoxy (G-10) Bonded to 316 Stainless Steel Core

  • Seal: Spring Energized Teflon Seal

  • Gasket Thickness: 0.250"

  • Sleeves: G-10 or Mylar

  • Washers (Double): G-10, Carbon Steel Zinc Plated, Hardened Steel, or Teflon Coated

Inspect-A-Lift® Pipe Support

Sizes 2" - 42" available in stock

  • Easy to install

  • Cost efficient

  • Non-corrosive

  • Fully adjustable

  • Reduces maintenance costs

  • Allows easy inspection of pipe

  • Eliminates standing water

  • No metal-to-metal contact

  • Prevents corrosion

  • Minimum contact points

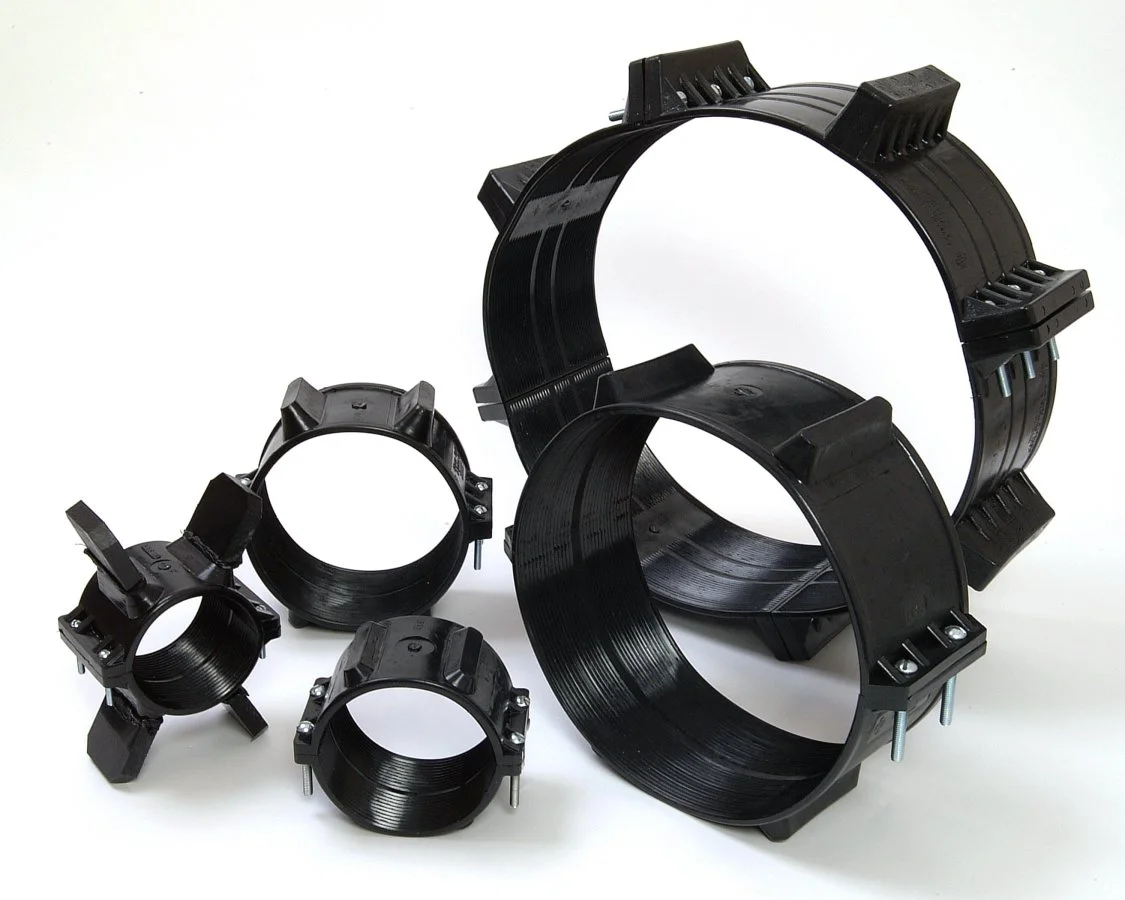

Casing Spacers and End Seals

  • Easy and efficient to install requiring no grease and no special tools

  • Installation by one person

  • Slides into place with ease

  • Coefficient of friction = .1

  • Requires no backfill

  • ecades of proven reliability Insulating and long-term corrosion protection

Advance Products & Systems End Seals outperform the costly and labor intensive brick and mortar method of sealing casing ends. While soil stress and pipe movement cause mortar to crack, the APS products move with the pipe insuring the integrity of the seal. And, unlike link-type sealing blocks that are limited to carrier/casing differential and can only be used on a concentric profile, the APS seals are totally flexible. APS offers four types of end seals which can accommodate any combination of pipe sizes.

Innerlynx Modular Seal

  • Innerlynx® form a hydrostatic seal up to 40 psig and up to 92.28 feet of head pressure.

  • Innerlynx® can be easily reinstalled many times over the life of the installation.

  • Innerlynx® are manufactured and assembled in the U.S.A.

  • Innerlynx® electrically isolate the inner carrier pipe from the penetrated structure.

  • Innerlynx® can be installed easily and quickly by one worker with no special tools.

  • Innerlynx® offer 21 different sizes for all pipe diameters ranging from 1/2” – 144”.

  • Innerlynx® are made from synthetic rubbers with industrial strength UV and ozone resistant plastic or all metal plates.

  • Innerlynx® help absorb vibrations, shocks, and sound waves and act as a sound dampener.

  • Innerlynx® come in 5 models; EPDM Black, Nitrile Green, Silicone Grey, EPDM Blue & Silicone Red.

Kleerband® Flange Protector

With the Kleerband® design, visual inspection of the flange surface can be accomplished without removing the flange protector

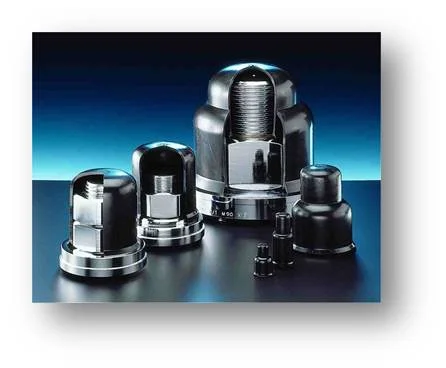

Radolid® Nut Caps

  • Radolid® Nut Caps eliminate corrosion of nuts and bolts thus allowing quick removal when necessary.

  • Manufactured of high density black or white UV-resistant polyethylene, these caps are reusable and will keep nuts and bolts corrosion free for years.

  • APS recommends coating the nuts, studs, and bolt heads with APS Kleergel® High Melt Corrosion Inhibitor Grease for added protection

Kleergel® Grease Cartridge

  • Dielectric, non-toxic and non-staining with clear appearance

  • Excellent adhesion – will not drip, run or evaporate

  • Will not damage wood, leather, plastic, fabrics, metals or painted surfaces

  • Maintains good viscosity over wide temperature ranges (-50 °F to 500 °F)

  • Has antioxidant, anti-corrosive and anti-wear additives to ensure prolonged use (about four times longer life than conventional petroleum grease)

Advance Products & Systems
Stainless Steel Flange Protector

Advance Flange Protectors are manufactured of 22 gauge 304 or 316 stainless steel band, stainless steel worm-gear strap, and grease fitting. An exclusive positive loading relief vent and plug assures the complete loading of flange cavities plus allows you to visually inspect the flange without removal of the protector, is standard.

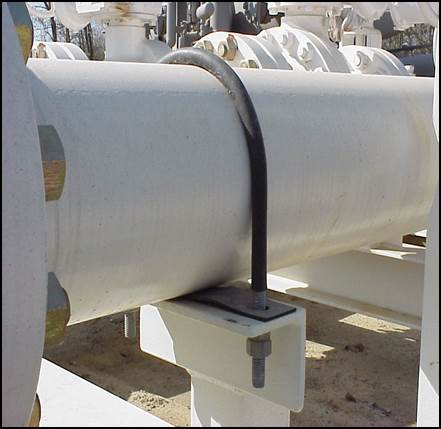

Polyolefin and Powder Coated U-Bolt with Thermoplastic Support Pad

  • VERSATILITY - With a wide variety of sizes available, U-Bolt Cote II can be applied to all makes and sizes of U-Bolts.

  • PROTECTION - A rugged and durable covering eliminates metal to metal contact.

  • RELIABILITY - U-Bolt Cote II provides high abrasive and corrosive resistance through a continuous sheath which eliminates fraying and unraveling. U-Bolt Cote II is virtually unaffected by heat, ultraviolet rays, vibration, electrolysis, sandblasting or any other rigors conducive to an industrial and marine environment.

  • EASE OF INSTALLATION - The U-Bolt size has been considered to accommodate the coating thickness assuring a secure fit over the pipe.

Monolithic Isolating joint

Isojoint® provides for current control by separating pipe work into distinct zones and effectively eliminating long-line currents. This assures increased plant and equipment life by reducing or eliminating corrosion damage.

  • Non-conductive epoxy coatings help prevent shorts, both externally and internally

  • Excellent bending and torsional resistance

  • Earthquake resistant - Acts as a thrust block or joint

  • No inspection pits, vaults or maintenance needed - weld into place and direct bury - reliable, worry-free cathodic isolation

  • Isolates stray currents impressed on the pipe from exterior forces such as electrical transmission systems, earth currents and currents flowing from point to point

Foreman Night Cap

Foreman Nite Caps outperform inefficient caps, sacks, sheet iron plates and canvas covers, and are reusable indefinitely. Replacement parts such as gaskets and other components are available.
